Project Description

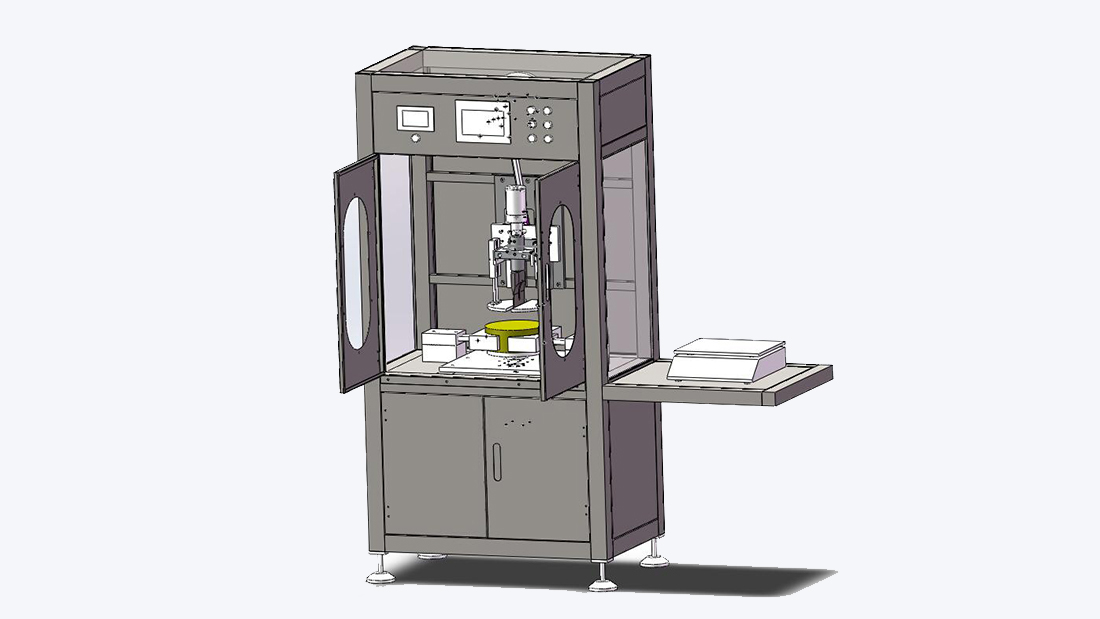

UFM3500W Ultrasonic Cheese Slicing Machine

Product Description

The UFM3500W is an in-line intelligent portioning machine with ultrasonic cutting technology, designed for fixed weight portioning of cheese, cake,pizza and so on. The machine incorporates an integrated weigh-scale which is used to pre-weigh cutting products and then portion it for optimum results – maximising yield and minimising giveaway.

Cutting Mode Schematic

Ultrasonic Cheese Slicing Machine - Cheese Slicer - Cheersonic

Actual Cutting Effect Image

UFM3500_5

Key Features

• Pre-weigh system manages variation in cutting products weight
• Superior cut quality using ultrasonic technology
• Accurate portion control with minimum giveaway and maximum yield
• Hygienic, low maintenance and easy to clean

Applications

The device has two cutting modes, including round portion mode and slice mode. The working speed and angle parameters are adjustable.
It can be used for the round shape of cheese, cakes, pizza and other baked goods.

UFM3500W Ultrasonic Cheese Slicing Machine
Dimensions (length) x (width) x (high) 2100x650x1800mm
Weight 350Kg
Rated power 3.5kw
Cutting speed 60 knives / min
Maximum cutting size Round: up to 400 mm in diameter
Maximum effective cutting height 65mm (80mm and 150 mm could be customized)
Number of cutting knives 1
Cutting knife size 200 mm
Whether it can be rotated Blades rotate
Cut type Round
Conveyor belt (several) No
Rack structure Stainless steel
Safety protection system Safety protection door
Screen 7 inch touch screen
Control cabinet Built-in
Control System Multi-axis Control System
Cutting knife control system Servo motor
Electric supply Single phase, 220v, 50-60Hz
Compressed air connection Max.0.4Mpa For fixture only
Product into and out of material Manually
Machine mobility Pully
